How to Build a Raspberry Pi Powered NAS: Step-by-Step Guide

Looking to build your own network-attached storage (NAS) without spending a fortune? A Raspberry Pi offers a low-cost, energy-efficient, and surprisingly powerful solution for centralising your files, backups, media, and more. Whether you want a shared drive for your household, a personal cloud you can access remotely, or a secure place for media and backups, building a NAS using a Raspberry Pi gives you full control over your storage — all in a compact and affordable package.

This DIY NAS project is perfect for tech enthusiasts and beginners alike. With just a few components and some open-source software, you can set up a Raspberry Pi to act as a file server accessible across your network. This guide walks you through the benefits, hardware setup, software installation, and configuration needed to get your Raspberry Pi NAS up and running.

1. Why Choose a Raspberry Pi for Your NAS

The Raspberry Pi is a versatile and budget-friendly single-board computer that’s ideal for low-power server applications like a NAS. Here’s why it’s a great choice:

• Cost-effective: Traditional NAS systems can be expensive, especially those with built-in features you may not need. A Raspberry Pi setup can cost a fraction of the price while still offering robust storage capabilities.
• Low power consumption: Unlike full-sized PCs or commercial NAS boxes that consume 30–100W or more, a Raspberry Pi typically draws less than 10W, making it highly energy-efficient for 24/7 operation.
• Compact and quiet: Its small form factor means it can be tucked away almost anywhere. With no fans or moving parts (aside from external drives), it’s silent during operation.
• Customisable and flexible: With support for various Linux distributions and open-source NAS software, you can tailor the setup to your exact needs — whether for media streaming, backups, file sharing, or remote access.
• Community support: The Raspberry Pi has a large, active community, so there are plenty of tutorials, troubleshooting guides, and forums available if you need help.

In short, the Raspberry Pi gives you an affordable entry point into the world of personal cloud storage and home servers — perfect for tech-savvy users looking for a project that combines utility with hands-on learning.

2. Hardware Requirements

Before you begin building your Raspberry Pi NAS, gather the necessary components. Here’s what you’ll need:

Essential Components:

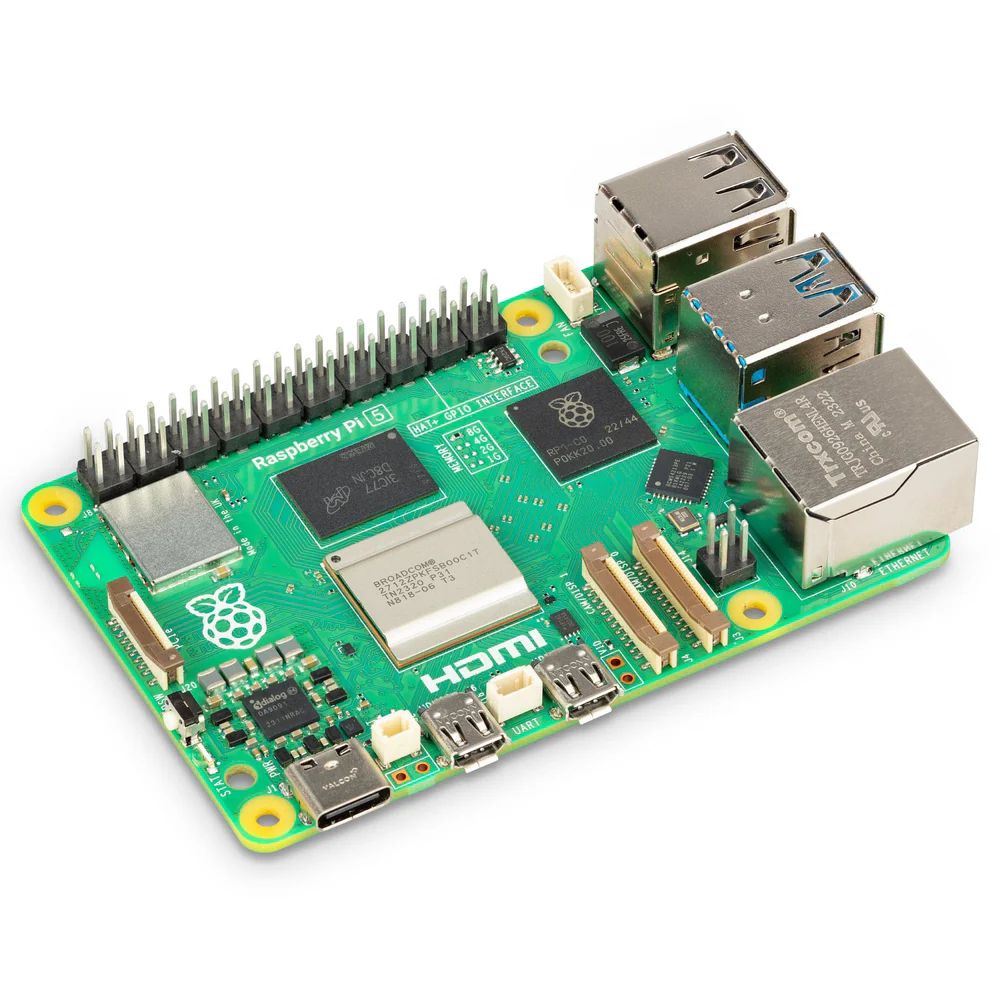

1. Raspberry Pi 4 or 5 (2GB, 4GB, 8GB and 16GB (for Pi 5)): The Raspberry Pi 5 is preferred for its USB 3.0 ports and gigabit Ethernet, which offer faster transfer speeds compared to earlier models. As for memory, 2GB model may be cheap but can slow down often due to memory swap. Go for at least 4GB or better, move up to 8GB if budget permits. 16GB may be over the top but does offer longevity.
2. MicroSD Card (16GB or more, Class 10): Used for the operating system. Opt for a high-quality, high-speed card for reliability.
3. External Storage (USB Drives or HDD/SSD Enclosures): These will be your actual storage volumes. USB 3.0 drives or SSDs in USB 3.0 enclosures are ideal for speed.
4. Power Supply (Official Raspberry Pi 5 PSU, 5V 3A USB-C): A reliable power supply is crucial, especially when connecting multiple USB-powered drives.
5. USB Hub with External Power (optional): If you plan to connect more than two external drives, a powered USB hub helps distribute power more evenly and prevents overload.
6. Ethernet Cable: For a stable and fast network connection, connect your Pi directly to your router using an Ethernet cable.
7. Case with Cooling (optional but recommended): A ventilated or fan-cooled case can help keep temperatures in check during sustained data transfers.

Optional Accessories:

• Uninterruptible Power Supply (UPS): Prevents data loss or corruption in the event of a power cut.
• Wi-Fi dongle (if not using Ethernet): Most Raspberry Pi 4s have built-in Wi-Fi, but Ethernet is preferred for speed and reliability.
• Heatsinks or a fan: Especially useful if your Raspberry Pi will be under heavy load for long periods.
• Once you’ve assembled the hardware, you’re ready to install the software and configure your Raspberry Pi to function as a NAS.

3. Choosing the Right NAS Software

When it comes to setting up a NAS on your Raspberry Pi, the choice of software is key. You want something lightweight, reliable, and with a user-friendly interface. Fortunately, there are several great options available that work well on Raspberry Pi:

Top NAS Software Options for Raspberry Pi:

OpenMediaVault (OMV)

Perhaps the most popular choice for Raspberry Pi NAS builds, OMV is a free, open-source NAS solution based on Debian Linux. It features a web-based management interface, support for RAID, SMB/CIFS, FTP, NFS, Rsync, and more. It’s lightweight, regularly updated, and well-documented.

Samba (Manual Setup)

For more advanced users, setting up Samba manually on Raspberry Pi OS gives you full control over file sharing and permissions. While powerful, it lacks the convenience of a graphical interface.

Nextcloud

If your goal is to create a personal cloud with remote access, calendar sync, file sharing, and mobile apps, Nextcloud is a fantastic choice. It can be installed on top of Raspberry Pi OS or within a Docker container.

TrueNAS SCALE (for Pi 5 or Other SBCs)

While not compatible with the Raspberry Pi 4 due to resource demands, this enterprise-grade NAS OS may become viable on the Raspberry Pi 5 and other ARM-based devices with more RAM and CPU power.

For most users, OpenMediaVault is the best all-around choice — it’s simple to install, well-supported by the Pi community, and includes everything you need to get started.



4. Preparing and Installing the OS

Before installing NAS software like OpenMediaVault, you’ll need to prepare the Raspberry Pi with a base operating system. OMV has its own optimized image for Raspberry Pi, but you can also install it manually on Raspberry Pi OS Lite if you prefer. Here’s how to get started:

Step-by-Step: Preparing Your Pi

1. Download the OS or OMV Image

Visit the OpenMediaVault Download page or use a prebuilt Raspberry Pi OS Lite image if installing OMV manually. Use the Raspberry Pi Imager to flash the image onto your microSD card.

2. Flash the Image

Insert the microSD card into your computer and use Raspberry Pi Imager or Balena Etcher to flash the OS or OMV image. After flashing, insert the card into your Raspberry Pi.

3. Boot the Raspberry Pi

Connect your Raspberry Pi to a monitor, keyboard, and Ethernet (or enable SSH if headless). Power it on and let it complete the first boot setup. If using Raspberry Pi OS, log in (default: pi / raspberry) and update your system:

sudo apt update && sudo apt upgrade -y

4. (Optional) Enable SSH for Remote Access

If you’re running headless, enable SSH:

sudo systemctl enable ssh
sudo systemctl start ssh

Once your base OS is ready, you can install the NAS software and configure your networked drives.

5. Setting Up the NAS Software

With your Raspberry Pi powered up and connected, it’s time to install and configure the NAS software — we’ll continue with OpenMediaVault (OMV) as the example.

A. Installing OMV on Raspberry Pi OS Lite:

If you’re not using the prebuilt OMV image, you can install OMV manually with the following script:

wget -O - https://github.com/OpenMediaVault-Plugin-Developers/installScript/raw/master/install | sudo bash

The installation process can take 15–30 minutes. Once completed, reboot your Pi.

B. Access the OMV Web Interface:

1. Find your Pi’s IP address (use hostname -I or check your router).
2. Open a browser and navigate to:
   http://<raspberrypi-ip-address>/
3. Login with default credentials:

• Username: admin
• Password: openmediavault

C. Initial Setup Steps:

1. Change the admin password under System > General Settings.
2. Set your timezone and language under Date & Time.
3. Add your storage drives:

• Navigate to Storage > Disks to view connected drives.
• Format the disks under Storage > File Systems (usually EXT4 is a good choice).
• Mount the drives to make them usable.

Create shared folders:

• Go to Access Rights Management > Shared Folders.
• Define folders and assign them to your mounted storage.
• Use Services > SMB/CIFS to enable file sharing and assign shared folders.

Configure user accounts:

• Create individual users under Access Rights Management > User for secure access.

Once this is done, your Raspberry Pi NAS will be accessible from any computer on your network via file explorer (e.g., \\raspberrypi or \\<ip-address> in Windows).

• Save

6. Network Configuration and Remote Access

To make your Raspberry Pi NAS truly functional and accessible across your devices, you’ll need to configure your network correctly and optionally set up remote access.

A. Local Network Access:

By default, your Raspberry Pi NAS will be accessible to all devices on the same local network. To make this easier:

Assign a Static IP Address to your Pi using your router’s DHCP reservation or set it manually in OMV under Network > Interfaces. Access your NAS via file explorers using:

• Windows: \\<NAS-IP-Address> or \\<hostname>
• macOS/Linux: smb://<NAS-IP-Address> in Finder or file manager

B. Remote Access (Optional but Powerful):

Remote access lets you connect to your files from anywhere. There are several secure options:

Port Forwarding (less secure unless combined with a VPN):

• Forward ports (e.g. 445 for SMB, 22 for SSH) via your router.
• Use a dynamic DNS (DDNS) service like No-IP or DuckDNS to assign a memorable URL to your home IP address.

Set Up a VPN (Recommended): Use PiVPN to create a secure VPN tunnel into your home network. This is the safest method. Once connected, you can access your NAS as if you were on the local network.

Web Access via Nextcloud (Alternative): If you want a cloud-like interface for remote access, consider installing Nextcloud on your Pi for file management, syncing, and sharing over HTTPS.

For maximum security, always use strong passwords, disable unused services, and avoid opening ports unless absolutely necessary.

7. Backup and Sync Options

One of the primary purposes of a NAS is data protection. Ensuring your files are backed up and synced properly can prevent data loss and improve workflow efficiency.

A. Local Backups:

Use rsync or Duplicati to schedule regular backups from your main device to your NAS.
On OMV, you can set up backup jobs under System > Backup or install a plugin like openmediavault-backup.

B. Cloud Syncing:

Sync your NAS with popular cloud storage providers (Google Drive, Dropbox, OneDrive) using rclone.
rclone supports scheduled jobs and encrypted syncs — perfect for offsite backups.

C. Device-to-NAS Sync:

Install tools like Syncthing for real-time folder syncing between your NAS and multiple devices.
Syncthing is available for Windows, macOS, Linux, Android, and works over LAN or internet.

D. Automated Backup Tips:

Set up daily or weekly backups from your PC/laptop using backup tools (e.g., Mac Time Machine, Windows File History) directed to the NAS. If your Raspberry Pi is backing up to an external drive, ensure the drive is formatted properly and mounted automatically on boot.

With proper backup strategies, your Raspberry Pi NAS becomes a robust storage solution for everything from media libraries to important documents.

8. Performance Tips and Optimisations

Even though a Raspberry Pi isn’t as powerful as a dedicated NAS unit, with a few tweaks you can improve its speed, reliability, and efficiency.

Optimisation Tips:

• Use a High-Speed microSD Card or Boot from SSD: A Class 10 microSD or better still, a USB SSD, can drastically improve OS performance and boot times. Raspberry Pi 4 and 5 support USB boot.
• Enable Caching: OMV allows enabling write caching for drives under Storage > Disks. Just be cautious with data safety if you experience sudden power loss.
• Offload Heavy Tasks: Avoid using your NAS for CPU-intensive tasks like video transcoding. Use external devices or stream compatible formats directly.
• Minimise Running Services: Disable services you don’t use (e.g., FTP, Rsync, NFS) to save resources and reduce attack surfaces.
• Use Ethernet Over Wi-Fi: For faster and more stable transfers, always connect your Raspberry Pi via Ethernet rather than Wi-Fi.
• Keep It Cool: Use a fan case, heatsink, or passive cooling for your Raspberry Pi. Overheating can throttle performance over time.
• Regular Updates and Monitoring: Keep your system updated and monitor CPU, RAM, and disk usage via OMV’s dashboard or CLI tools like htop or iotop.

With these optimisations, your Raspberry Pi NAS will remain stable, efficient, and fast enough for everyday home or small office use.

Take it Further

For the tinkerers, here are more ways to improve your NAS setup. Please note that the following sections are optional for a NAS setup and caters to specific requirements such as RAID, Encryption and Monitoring.

A. Setting up RAID with USB Drives (Risks and Workarounds)

While the Raspberry Pi doesn’t support hardware RAID, you can simulate a RAID setup using software RAID through mdadm on Raspberry Pi OS. This allows you to configure RAID 0 (striping), RAID 1 (mirroring), or even more complex levels depending on your needs and number of drives. However, there are important caveats when using USB drives.

Risks and Limitations:

USB connections are less reliable than SATA, and multiple drives connected via USB hubs can lead to power and stability issues. Software RAID is CPU-intensive, and the Pi’s limited processing power may reduce performance. If one drive fails, RAID configurations like RAID 0 will result in total data loss.

Workarounds:

Use a powered USB hub to prevent under powering your drives. Consider RAID 1 for redundancy, but always pair it with regular external backups.Use a Raspberry Pi 4 or later for USB 3.0 support and improved performance.

While software RAID can add redundancy or speed, it’s best used for experimentation or non-critical storage. For important data, a regular backup strategy is still more reliable than RAID alone.

B. Encryption and Data Security

Protecting sensitive data is crucial, especially if your NAS is accessible over a network or remotely. Raspberry Pi supports a range of encryption options to help secure your NAS.

Encryption Options:

LUKS (Linux Unified Key Setup): Ideal for encrypting entire drives or partitions. You can set this up during initial drive formatting or manually via the terminal.

File-Level Encryption: Tools like gpg or EncFS can encrypt individual files or folders.

Security Best Practices:

• Use strong, unique passwords for all services.
• Change the default Raspberry Pi user credentials (pi/raspberry).
• Enable UFW (Uncomplicated Firewall) to restrict access to only required ports.
• Use SSH keys instead of password-based login.
• Regularly update your Pi’s packages to patch vulnerabilities.

For NAS setups accessible over the internet, consider setting up a VPN or at minimum, enabling HTTPS with SSL certificates for secure web access.

C. Monitoring Tools (like Pi-hole, Netdata)

Once your NAS is up and running, monitoring its health, performance, and even network traffic can help keep things smooth and secure.

Netdata: Netdata is a lightweight, real-time monitoring tool that runs beautifully on the Raspberry Pi. It provides an interactive web dashboard showing CPU, memory, disk I/O, network usage, and more. You can install it with a single command:

bash <(curl -Ss https://my-netdata.io/kickstart.sh)

Pi-hole: While Pi-hole is best known as a network-wide ad blocker, it can also serve as a useful DNS-level monitor to see what devices are accessing the internet from your home network. Running Pi-hole alongside your NAS can give you visibility and control over DNS queries and prevent data from being leaked to unwanted trackers.

Other Tools to Consider:

• htop: For terminal-based live monitoring of processes and resource usage.
• Fail2Ban: Helps secure SSH and web interfaces by blocking repeated failed login attempts.
• Smartmontools: Provides health checks and status reports for connected storage devices (especially useful for external USB drives that support SMART).

These tools enhance your NAS’s utility and help ensure long-term reliability and security.

Conclusion

Building your own NAS with a Raspberry Pi is a rewarding project that combines affordability, versatility, and functionality. Whether you’re looking to centralize your file storage, back up your important data, or create your own private cloud, a Raspberry Pi-powered NAS offers a low-cost, energy-efficient alternative to commercial solutions.

With the right software, proper setup, and a few smart optimisations, you can turn a humble Raspberry Pi into a reliable and accessible network storage device that meets your everyday needs. From media streaming and file sharing to remote access and automated backups, your custom-built NAS can scale with your workflow while keeping your data secure and under your control.

Whether you’re a tech enthusiast or a beginner exploring DIY home server solutions, this project is a great entry point into the world of personal data management and self-hosted services. Give it a try, and enjoy the satisfaction of building something powerful, practical, and perfectly tailored to your needs.
